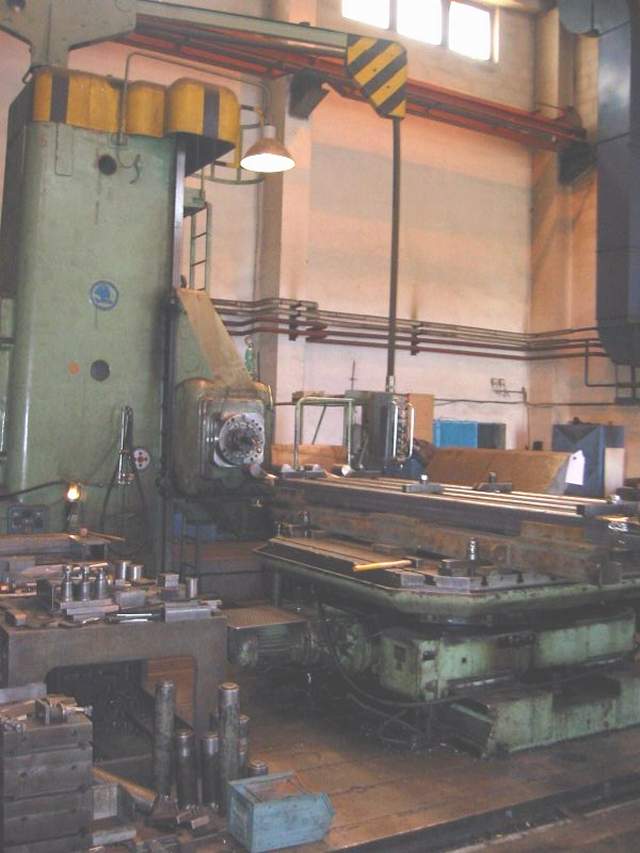

HORIZONTAL BORING MILL – SKODA – WD160 |
|
|
|
|
|
|
|
BORING
SPINDLE DIA |
160 |
mm |
|
SPINDLE
TAPER |
100 |
metric |
|
Z –
SPINDLE AXIAL |
1600 |
mm |
|
Z1 –
QUILL AXIAL |
1250 |
mm |
|
Y –
VERTICAL HEADSTOCK TRAVEL |
2500
|
mm |
|
X –
COLUMN TRAVEL |
5650 |
mm |
|
SPINDLE
REVOLUTIONS |
2-800 |
rpm |
|
TRAVERSE |
1,6-1600 |
mm/min |
|
RAPID
TRAVERSE |
1600 |
mm/min |
|
SPINDLE
MOTOR |
35 |
kW |
|
MACHINE
WEIGHT |
37000 |
Kg |
|
|
|
|
|
ROTARY
TABLE – E20 |
|
|
|
|
|
|
|
CLAMPING SURFACE |
2000 x
2000 |
Mm |
|
MAX.
WORKPIECE load |
20000 |
kg |
|
MAX.
TRAVEL OF LONGITUDINAL CARRIAGE |
1200 |
mm |
|
LONGITUDINAL TRAVERSE |
2,8-8-22,4 |
mm/min |
|
ROTARY
TRAVERSE |
1245 |
mm/min |
|
ROUND
RAPID TRAVERSE |
2600 |
mm/min |
|
MOTOR |
4 |
kW |
|
WEIGHT |
9350 |
kg |
|
