Basic technical parameters:

Type

THA 31/80

Diameter of sttel wire

2,2 to 3,15 mm

Max. diameter of Al-alloy wire

5,0 mm

Wire nominal diameter tolerance

+/- 0,04 mm

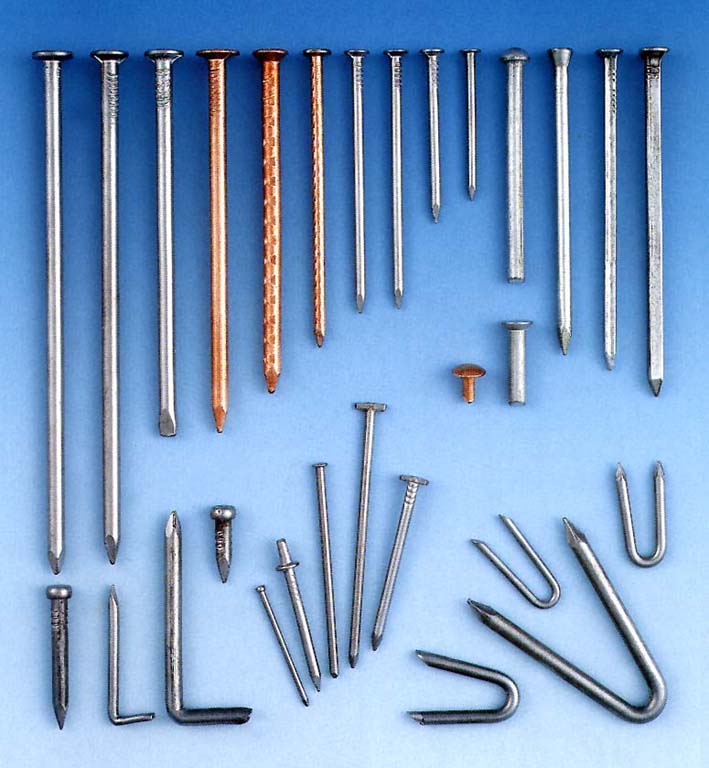

Length of nail

10 to 80 mm

Max. diameter of head *

8,0 mm

Number of nails manufactured

600 pcs

Maximum input

5,5 kW

Standard electrical equipment supplied

400 V/50 Hz, 3 phases (modification to special order)

Min. protection of supply leads

80 A

Machine weight without accessories

1480 kg

Machine weight with accessories

1578 kg

Basic dimensions (mm)

2050 x 1130 x 1190

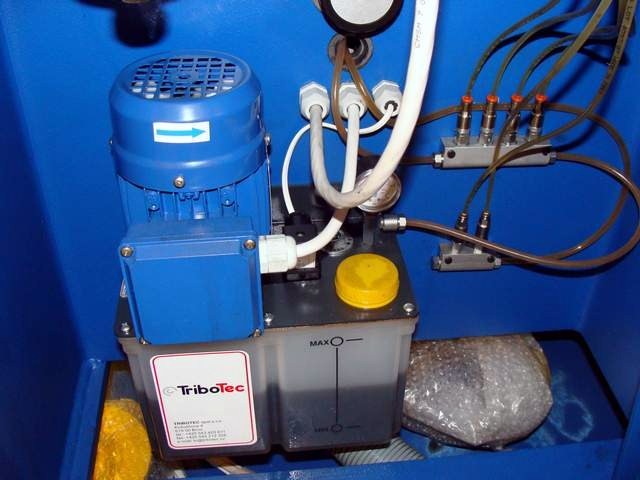

Lubrication

ELECTRONIC

Min. oil consumption

0,1 l/8 h.

Oil tank approx. capacity

16 l
