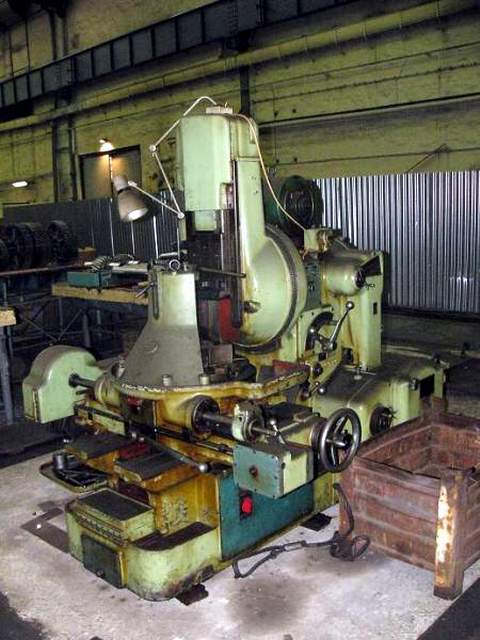

# 01087 - GEAR SHAPER MAAG SH75



ASK PRICE





Max. wheel diameter 750 mm Gear width 200 mm Max. module 10 Min. module 1 Min. wheel diameter 30 mm Max. number of teeth 300 Min. number of teeth 6 Tooth helical angle min/max 0 / 60 ° Min. ram stroke 0 mm Max. ram stroke 225 mm Table diameter 460 mm Table load 0,8 t No. of strokes 23,5 - 150 Hub/min Table hole 90 mm Total power requirement 7 kW Weight of the machine ca. 3,8 t Dimensions of the machine ca. 2,1 x 1,7 x 2,1 m Accessories Set of change gears Outboard support
