# 01155 -

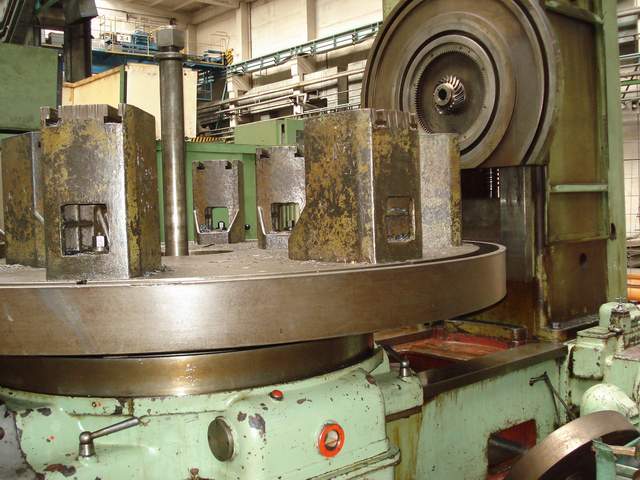

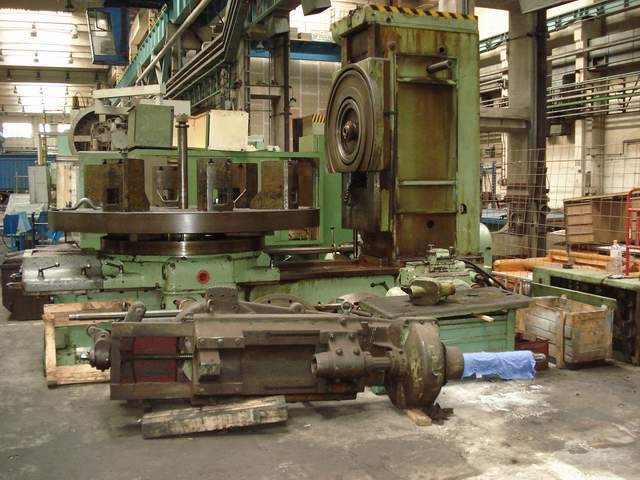

GEAR HOBBING MACHINE FO25 |
|
|
|
|
|
|
| |
|
|
Max modul 25 Max dia of the gear 3000mm Max dia of the
gear with outboard support 1300mm Distance between axis
of a spindle and camping arbor 80-1630mm Max dia of the
gear by tangencial method 10 grades 2400/800mm Max dia
of the gear by tangencial method 60 grades 500/700mm Max
number of teeth with standard change gears 448 Max face
over 1500mm dia of the gear 800mm Max face under 1500mm
dia of the gear 750mm Max hob dia 340mm Max hob length
500mm Revolutions steps 8 Revolution of hob per min
12,5-63 Table surface dia (basic) 1500mm Table surface
dia (additional) 2500mm The main motor power 14kW |
|
Accessories |

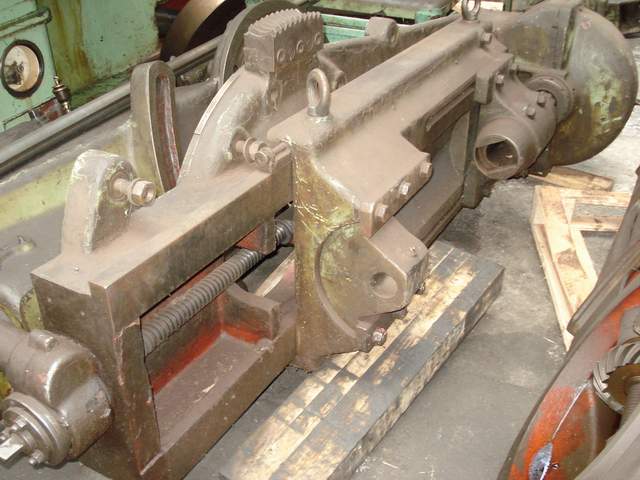

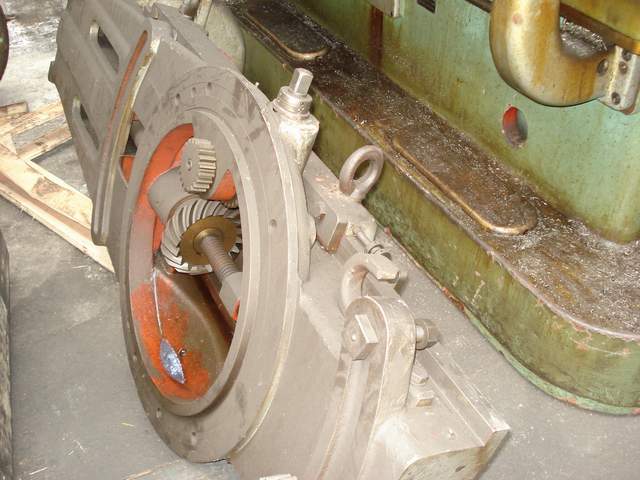

Standard milling head, tangencial milling head, set of
change gears, set of arbors, support of a gear (shoes) 8
pcs, extra table 2500mm |
|
|
|
|
| |
|
|
