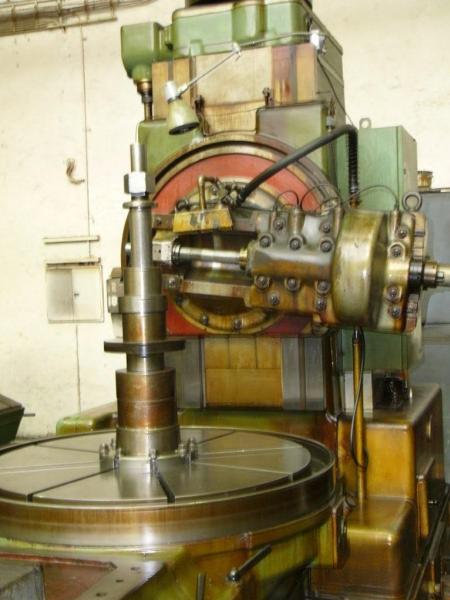

TOS GEAR HOBBING MACHINE
TYPE FO-16
SPECIFICATIONS:
Max. Work Diameter without support 63"
Max. Work Diameter with support 35"
Max. Diametral Pitch in Steel 1.25
Max. Face Capacity, Straight 22"
Number of Teeth 12-448
Diameter of Work Table 54"
Diameter of Bore in Work Table 7.25"
Depth of Bore in Work Table 26"
Max. Distance of Hob to Work Center 45"
Min. Distance of Hob to Work Center 4"
Max. Distance of Hob Axis to Work Table 41"
Min. Distance of Hob Axis to Work Table 16"
Vertical Travel of Hob 25"
Max. Diameter of Hob 10"
Max. Length of Hob 11"
Hob Speeds (8 Steps) 16-80 RPM
Vertical Feeds (36 Steps) inches/table rev. .01-.25"
Horizontal Feeds of work table (36 steps) in./table rev. .002-.06"
Tangential Feeds (36 Steps) in./table rev. .005-.16"
Main Motor 16 HP
Total Power 37 HP
Floor Space (approx.) 170"x80"
Machine Weight (approx.) 40,000 lbs.
MACHINE IS EQUIPPED WITH THE FOLLOWING:
(1) Hob Arbor
* Misc. Change Gears
* Tangential Head
