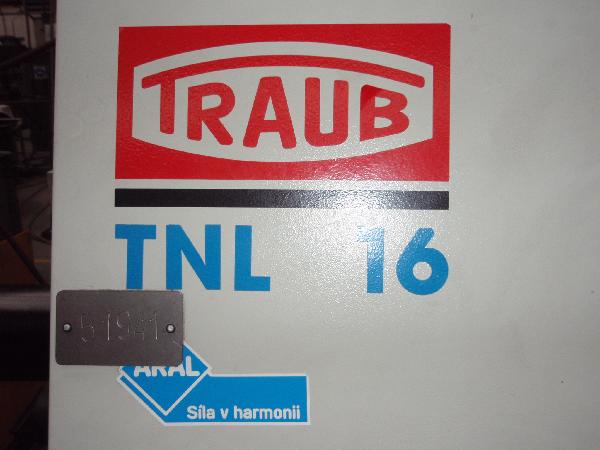

TRAUB
TNL 16 G

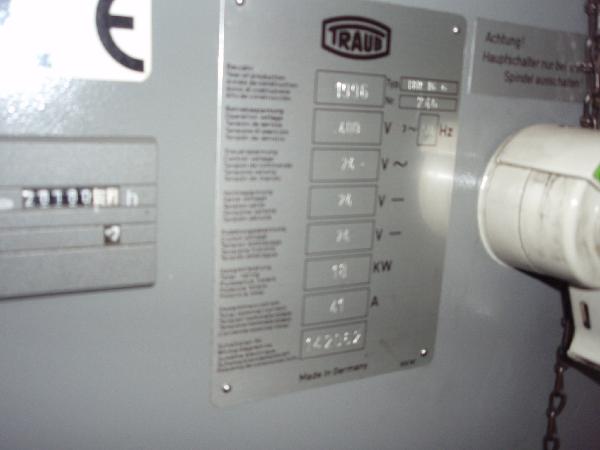

YOP: 1996
REV/MIN: 200-8000
MACHINE WEIGHT (kg): 2800
BAR DIAM. (mm): 16
With CNC control Traub TX 8 F, opposed
spindle, collet chuck Æ50mm on the main and

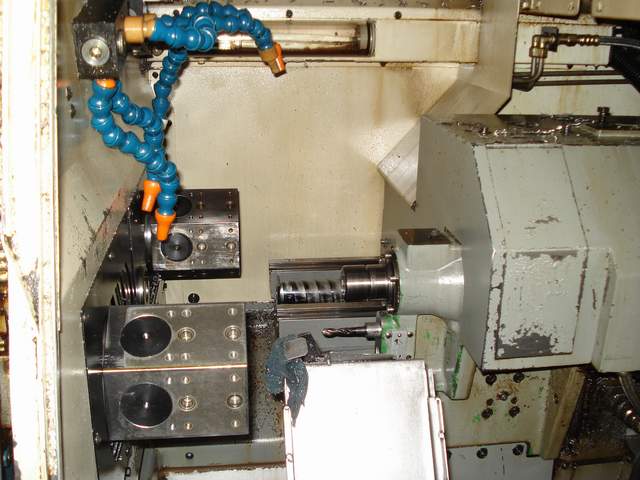

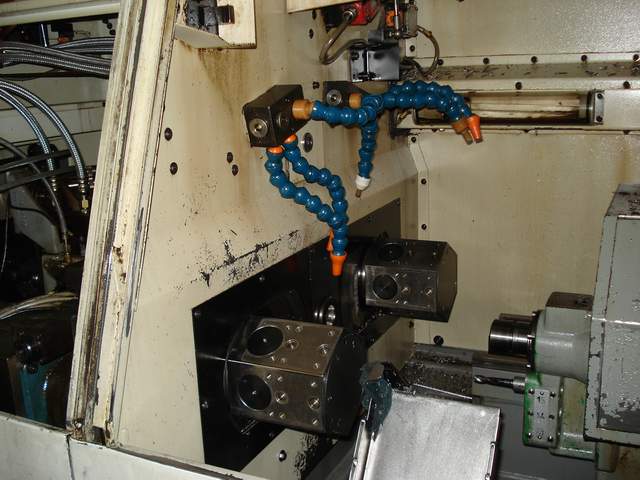

opposed spindle, 2x C-Achse, 2x 6-fold revolver,

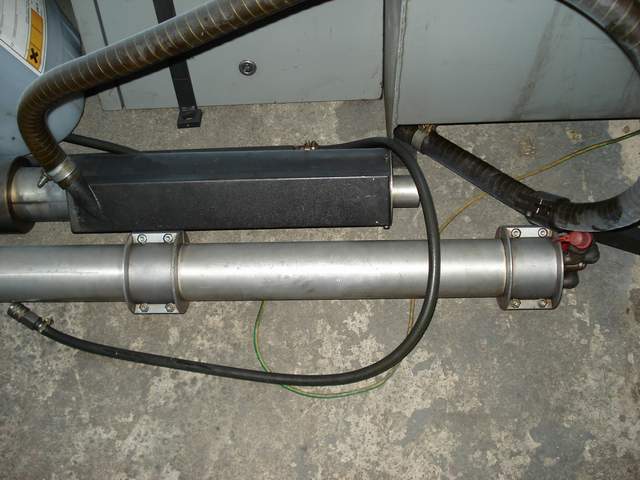

driven tools, opposed spindle has a Y-axis, bar

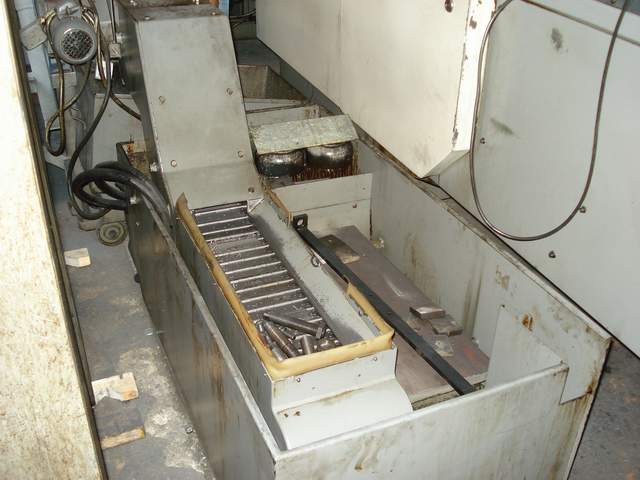

loading magazine LNS-Hydrobar Mini Sprint, chip

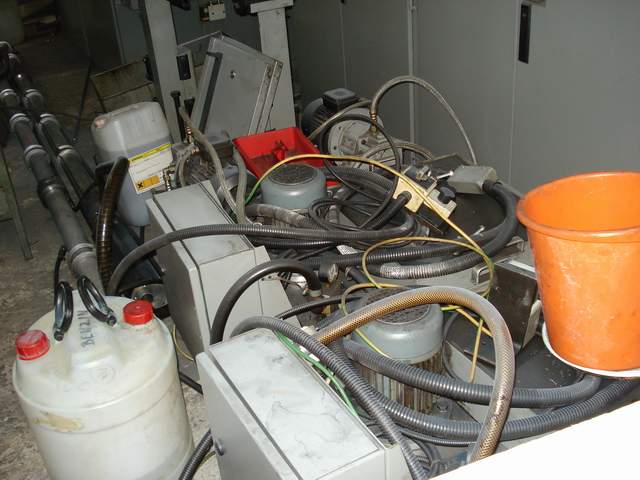

conveyor, work piece catcher, coolant device.

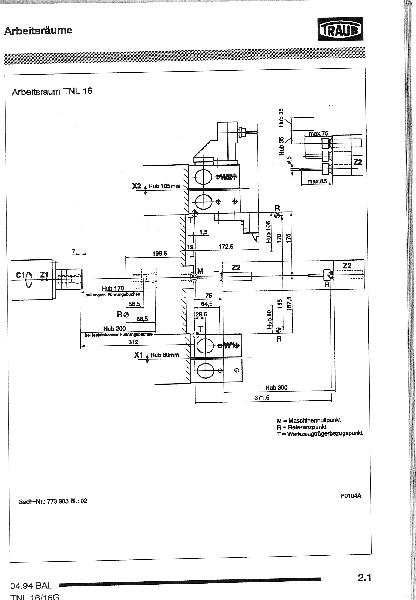

max. work piece lenght 500 mm
max. turning lenght (1 stroke) 200 mm
spindle head useable (main spindle) 200 mm
max. longitudinal travel (opposed spindle) 300
mm
max. stroke Y-travel (opposed spindle) 155
(+140/-15) mm
speed range driven tools 200-5000 UpM /rpm
turret head 2x 6 holes
revolver 1 X-travel 80 mm
revolver 2 X-travel 105 mm
max. working Ø for working with the bar loading
magazine 16 mm
|
|
