Technical Specification
BASIC DATA:

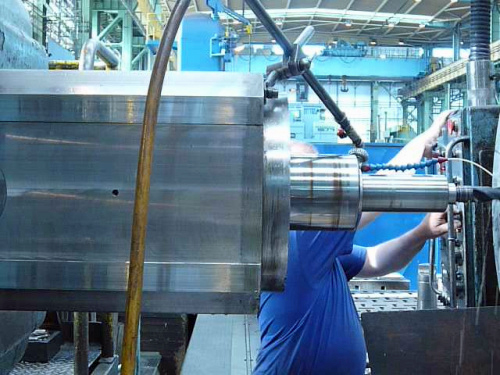

Spindle diameter 160 mm
Quill size 450 x 450 mm
Spindle taper: M 100
Max. torque on spindle 2500 kpm
Max. spindle travel, Z 1.600 mm
Max. quill travel, W 1.250 mm
Column travel on bed, X 4.150 mm
Headstock travel on column, Y 2.500 mm
SPEEDS
Spindle speeds in 4 steps 2 - 800 RPM
FEEDS
Drillling feeds for spindle and quill 0.5 - 1600 mm/min (in
4steps)
Milling feeds for column and headstock 1 – 3.200 mm/min (in 3
tseps)
Rapid traverse
Drilling for spindle and quill 1.600 mm/min
Milling for column and headstock 3.200 mm/min
DIMENSION
Height of machine 7.620 mm
Height of bed 550 mm
Width of bed 2.000 mm
Main motor power 65 kW
Weight of machine 67 t
ACCESSORIES
Floor field 3.900 x 5.600mm (configuration of 2 floor plates)
|
Machine directly bought from SKODA factory.
It was periodically maintained.Modernized in 1988.
Machine is stored in in the Czech Republic and it is possible for
inspection.
Machine is in very good condition with high
accuracy.
It is ready for DC drive as for main motor as for feed motors.
Electric of the machine was partialy modernized in 1988.
There was also replaced spindle and leat screw on Y axis on the
machine.
The price is without table, but for extra expences we are able to
find one.
|
