TECHNICAL SPECIFICATIONS

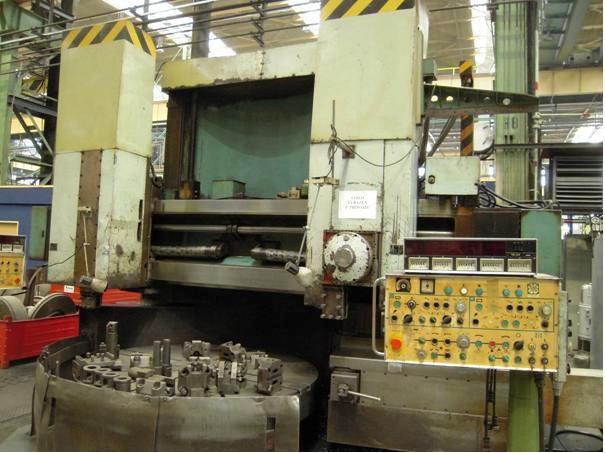

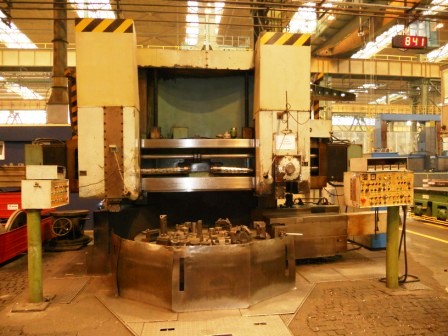

TOS HULIN

MAX. SWING: 2300mm

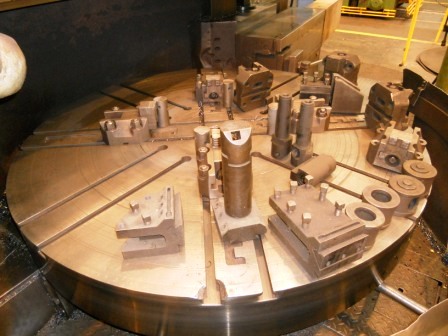

TABLE DIA: 2000mm

MACHINING HEIGHT: 1500mm

WORKPIECE WEIGHT: 15000kg

SIDE RAM STROKE VERTICAL: 1000mm

TABLE REV.: 1,5-160 rev/min

WORKING FEEDS: 0,05-20mm/rev

FAST FEEDS: 3500mm/min

DIMENSIONS: l x w x h: 6160x3620x6220

MACHINE WEIGHT: 38000kg
