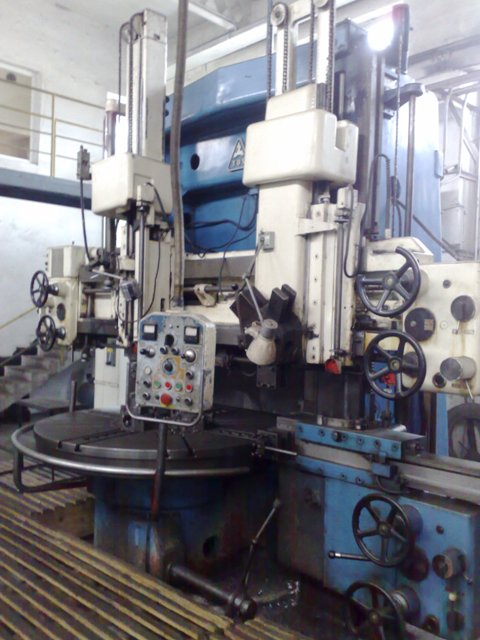

TECHNICAL SPECIFICATIONS |
|
MAX. DIA. AT PERIPHERAL TURNING |
mm |
1620 |
|
MAX. DIA. AT FACING |
mm |
1700 |
|
MAX. WORKPIECE HIGHT |
mm |
1380 |
|
SLIDE RAM STROKE - VERTICAL |
mm |
800 |
|
SLIDE RAM STROKE - HORIZONTAL |
mm |
630 |
|
CROSS RAIL SHIFTING - VERTICAL |
mm |
950 |
|
MAX. WORKPIECE WEIGHT |
kg |
5000 |
|
MAX. TORSION MOMENT ON THE TABLE |
Nm |
22500 |
|
MAX. CUTTING FORCE ON THE RIGHT CARRIAGE |
N |
35000 |
|
MAX. CUTTING FORCE ON THE LEFT CARRIAGE |
N |
45000 |
|
MAX. CUTTING FORCE ON THE LATERAL CARRIEGE |
N |
45000 |
|
DIMENSION OF THE TOOL RECOMMENDED |
mm |
40x40 |
|
TABLE REV. |
min-1 |
3,5-150 |
|
WORKING FEEDS |
|
|
|
- NUM. |
|
24 |
|
- GAMA |
mm/rev |
0,06-9 |
|
- FAST FEEDS |
mm.min-1 |
2000 |
|
23 METRIC |
mm |
1-28 |
|
24 WITHWORTH |
1” |
10-1 |
|
MOTOR |
KW |
37 |
|
MACHINE DIMENSIONS LENGHT xWIDTHxHEIGHT |
mm |
4500x2700x4730 |
|
MACHINE WEIGHT |
kg |
18500 |
