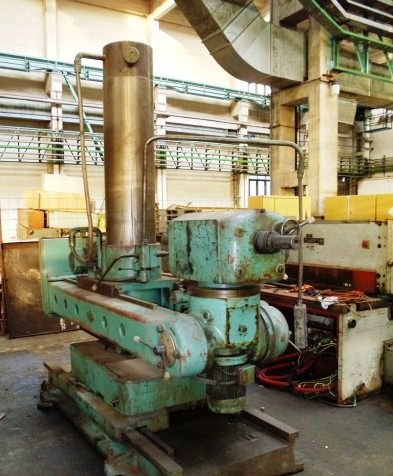

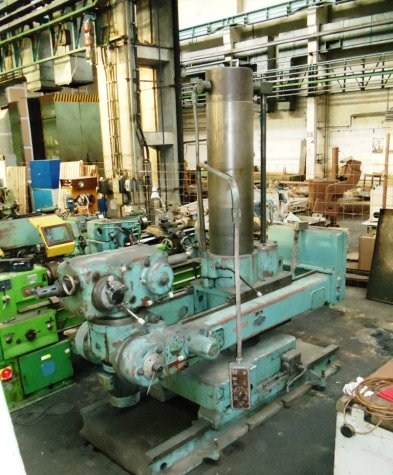

PORTABLE DRILLING MAS MACHINE VRM50

The largest diameter bore "full coverage" in the steel strength of 588 MPa, 50 mm
The biggest thread in steel strength 588 MPa M48
Distance from spindle pole jacket from 1170 to 2070 mm
Radius of pitch circle of holes drilled from 1370 to 2270 mm
Distance of spindle head vertical from the floor (when retracted spindle)
the spindle taper Morse 4 0-1585 mm
the spindle taper Morse 5 0-1555 mm
Distance spindle axis in a horizontal position from the floor 295 to 2725 mm
Vertical arm 1250 mm
Horizontal adjustment 900 mm arms
Rotating arm 360 °
Spindle Rotation 360 °
Tilting the head with the headstock 180 °
Travel by sleigh bed 1200 mm column
Diameter of spindle head
Morse taper 4 70 mm
taper Morse 5 75 mm
Spindle stroke (drilling depth) 350 mm
Spindle speed - 15 degrees in the range 16-800min-1
Shifts spindle - 6 degrees in the range of 0.05 to 0.5 mm / rev
The largest power sliding 10000N
Spindle 4 / 1 425kW/1/min
Electric lifting arms 2,2 / 1 420kW/1/min
Electric slide for travel 1.1 / 1 420kW/1/min
Electric motor for clamping shell 1.1 / 2 800kW/1/min
Electric motor for tilting the head and shoulder movement 1.1 / 2 800kW/1/min
Bed dimensions: length x width x height 2610x1050x2600mm
The largest work machine dimensions: length x width x height 5740x4540x3440mm
Machine weight 6100 kg
