#02237 - DRILLING MACHINE VO80







Technical Specification

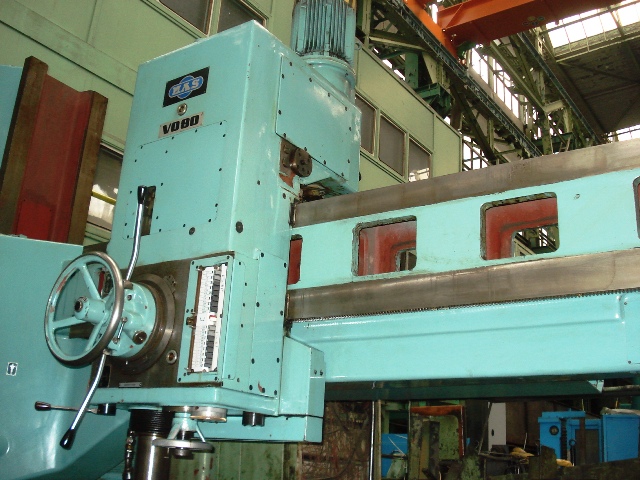

BASIC DATA: RADIAL DRILL VO80

Producer MAS
Maximum of hole drilled into steel of 600 MPa in strength 80 mm
Maximum of a hole drilled into grea iron of 250 MPa in strength 110 mm
Maximum vertical displacement of the arm 1250 mm
Maximum motion of drilling head along the arm 2015 mm
Max./min spindle reach 2565/550 mm
Taper in spindle Morse 6
Machine weight 12 100 kg
