Year of production: 2000
Control system: Fagor80 55 TC CNC

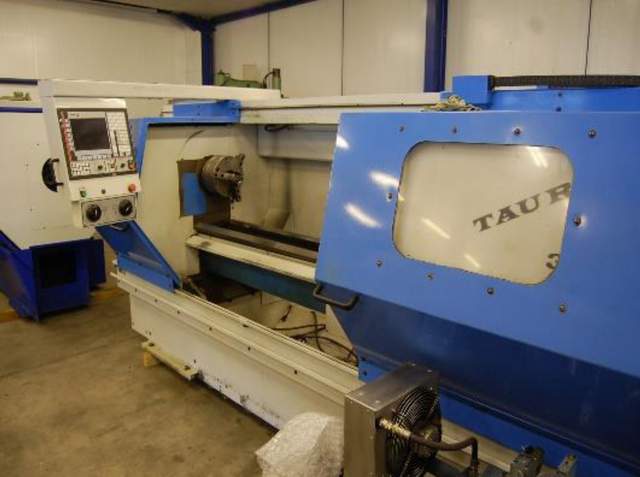

Type: Taurus 310
Made in : PINACHO
Ø over bed: 620 mm
Ø over support: 415 mm
Distance between centers: 1 500 mm
Spindle bore: 80 mm
Conetips: Morse 6
Spindel speed: 0 –2 500
Feeds: 0 -10 m.min-1
Main motor: 17 kW
Machine weight: 3 200 kg
Machine dimensions:
3 280 x 1 850 x 1 960 mm
