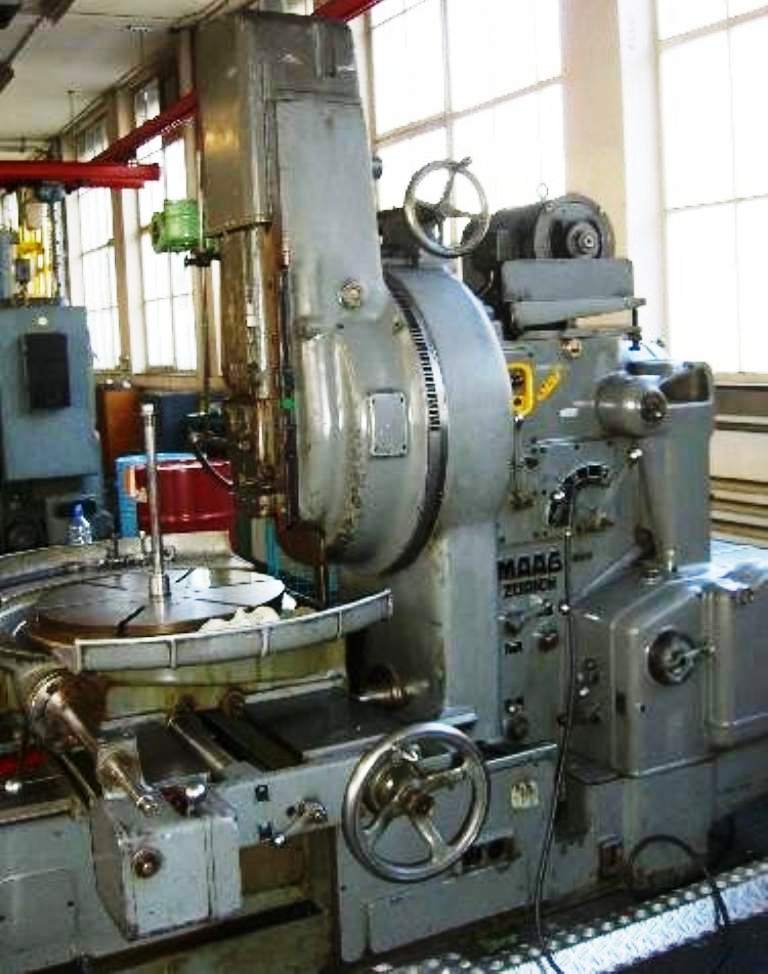

TECHNICAL SPECIFICATION:

max. wheel diameter 1200 mm
gear width 320 mm
max. module 15
min. module 2
tooth width - helical gear - 15 degrees 290 mm
tooth width - helical gear - 30 degrees 255 mm
tooth width - helical gear - 45 degrees 200 mm
ram stroke range 8,6 - 33,8 Hub/min
down feeds 43,2 - 110 mm/Hub
rotary feeds 9-80 Hub/Tlg.
electrics - voltage/frequency 380/50 V/Hz
total power requirement 16 PS
