Technical Specification

BASIC DATA:


Model	T max  [°C]	Inside dimensions  retort [mm]  [width x depth x height]	Volume  [l]	Outside dimensions  [mm]  [width x depth x height]	Power  [kW]	Voltage  [V]	Weight  [kg]
PKR 35/09	900	220 x 450 x 200	24	1400 x 1300 x 1450	11	400 3/N	400
PKR 55/09	900	320 x 450 x 135	30	1450 x 1300 x 1450	13	400 3/N	570
PKR 130/09	900	450 x 700 x 200	75	1450 x 1550 x 1450	21	400 3/N	950
PKR 180/09	900	500 x 700 x 235	110	1650 x 1550 x 1650	29	400 3/N	1050
PKR 350/09	900	700 x 1050 x 240	230	1800 x 1850 x 1750	50	400 3/N	1350

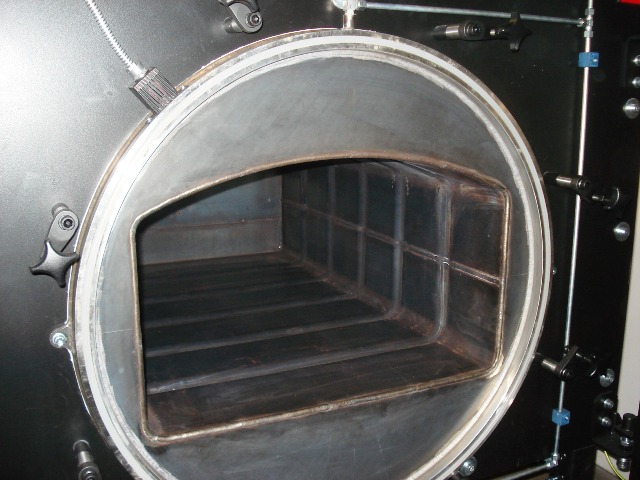

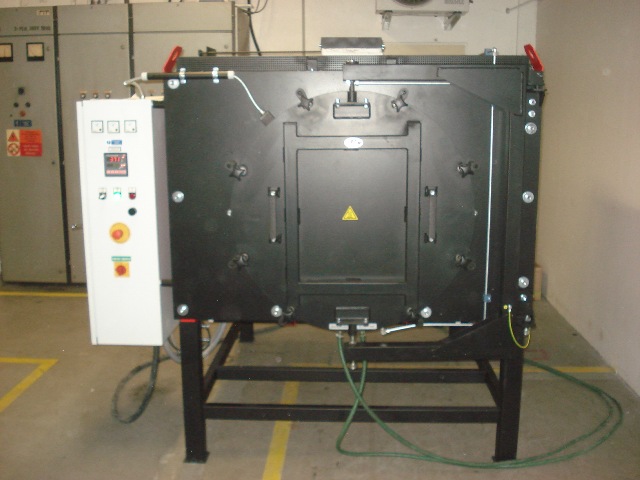

·       Retort furnaces gas robust design with the horizontal retort

·     Retort made of stainless steel is highly resistant to heat 900°C - /special material INCONEL retort – resistant up to 1,100°C/

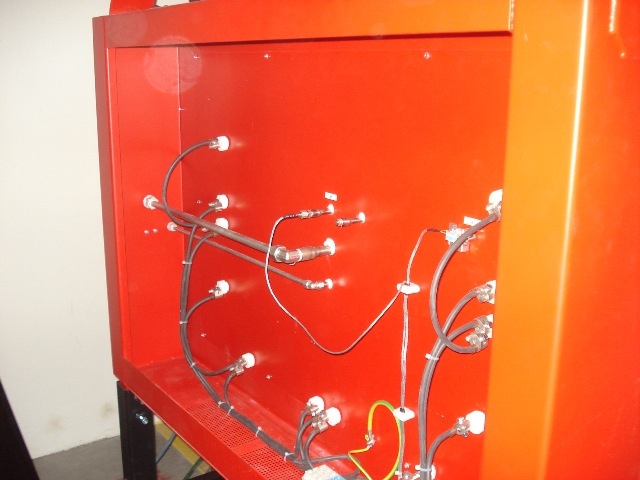

·     Heating from two sides and the bottom provides uniform temperature distribution in the retort

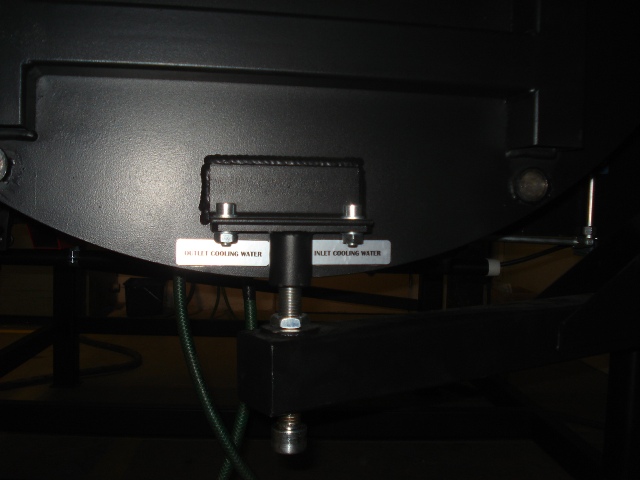

·     Door flange cooled by water

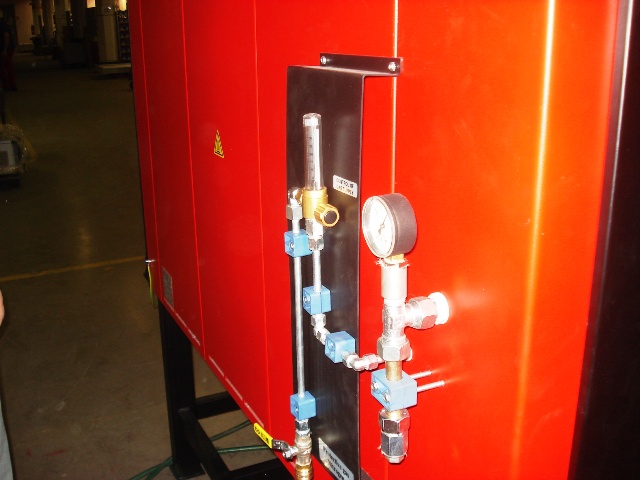

·     Suitable for various inert gases such as nitrogen, argon, forming gas 95/5

·     Very low gas consumption

·     Produced in the Czech Republic under service level of the European Community / EC /
